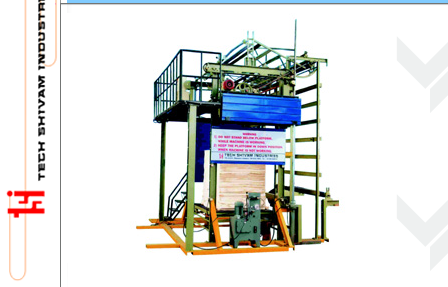

· Custom made Machine, Fabric width on request.
· Maximum Capacity: 1500meters.
· Working table descends up to 78” (2000mm).
· Length of folds adjustable up to 1.00 meter.
· Rigid structure of M.S. Channel to withstand width and weight of the fabric.
· Folding blades are mounted on the carriage off steel roller chain.
· A simple device for exact adjustment of the folding blades
· Hydraulic System for counterbalancing of the platform comprising of
double acting hydraulic cylinder and hydraulic power pack for pushing
and pulling of the table: Capacity 1000kg.
· Standing platform at double folding level.
· Ladder for climbing up to the double folding level.
· Main Electric Motor 3hp x 1000rpm with suitable starter and switches.
